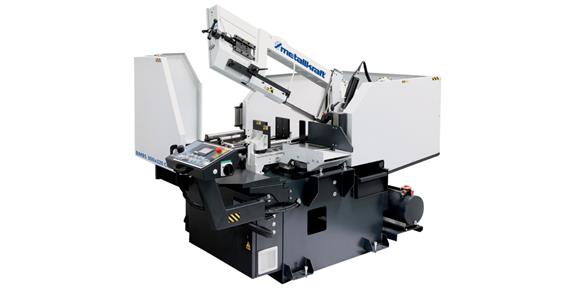

Hydraulic swivel frame metal band saw type BMBS 300x320 CNC-G

Katalogové č.: 1092862 102

Cena bez DPH:
Katalogová cena:

Ušetříte:

Objednáme pro Vás

Přidat do oblíbených

Množství

Minimální množství pro objednání: 1

Přidat do košíku

Popis

Provedení

Semi-automatic metal bandsaw with swivelling frame
For mitre cuts from 0° to +60°
With a rugged three-phase motor 400 V/50 Hz, 2.4 kW,
With overload protection
Frequency converter: allows infinitely variable adjustment
of saw band speed from 20-100
m/min
2 clamping sawhorses with long-stroke hydraulic cylinders
Presetting to the cross-section of the material being cut
is therefore unnecessary
- Precise and robust band guides with adjustable SC plates
- Hydraulically controlled system for both vices and for the up
and down movement of the saw arm
- Material feed via ball screw
- With chip removal brush for keeping the saw band
perfectly clean and maintained
- Automatically swivel adjustment of cutting gap
mitre adjustment
- Saw arm inclined by 25°, thus longer
service life of the saw band
- BRP - saw band monitoring

Dodávka
For sawing e.g. stainless steel, tool steel, hollow profiles and solid materials. Recommended sawing angle in solid material (round) 0° 150 mm/45°R 110 mm/60°R 80 mm.
